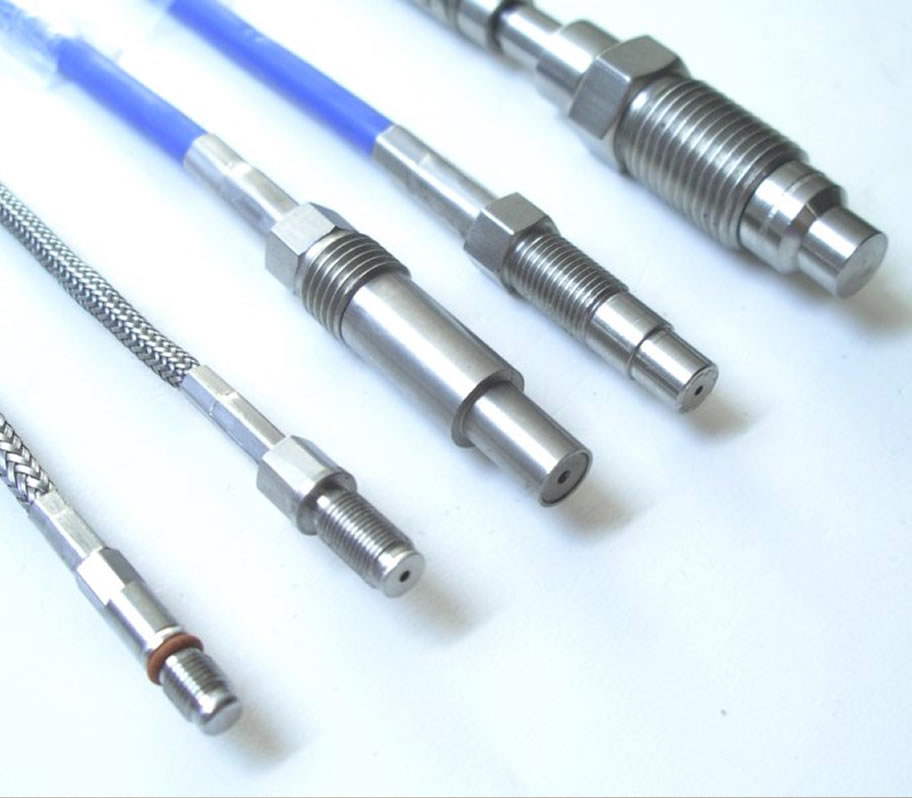

Semiconductor and Foil Gages, flush mounted Membrane, M3, 4, 5, 10, 16 Thread
Based on Foil and Semiconductor Gages providing 20mV or 150mV without conditioning and 10V or 4 - 20mA Signals with integrated amplifiers. Flush Membrane for very high dynamics. Ranges : 0 to 1bar up to 1000bar, Temperature −40°C to +200°C, excellent Linearity and long term Stability.
Semiconductor Gages, Miniaturized, Flush Membrane from 1,5 mm Diameter
Based on Semiconductor Gages with Signals of 20mV, 150mV, 10V and 4 - 20mA. Flush Membrane for high dynamic applications. Housing and Membrane made of Stailess Steel. Ranges 0 to 1bar up to 100bar. Compensated Temperature Ranges : −40°C bis +150°C.

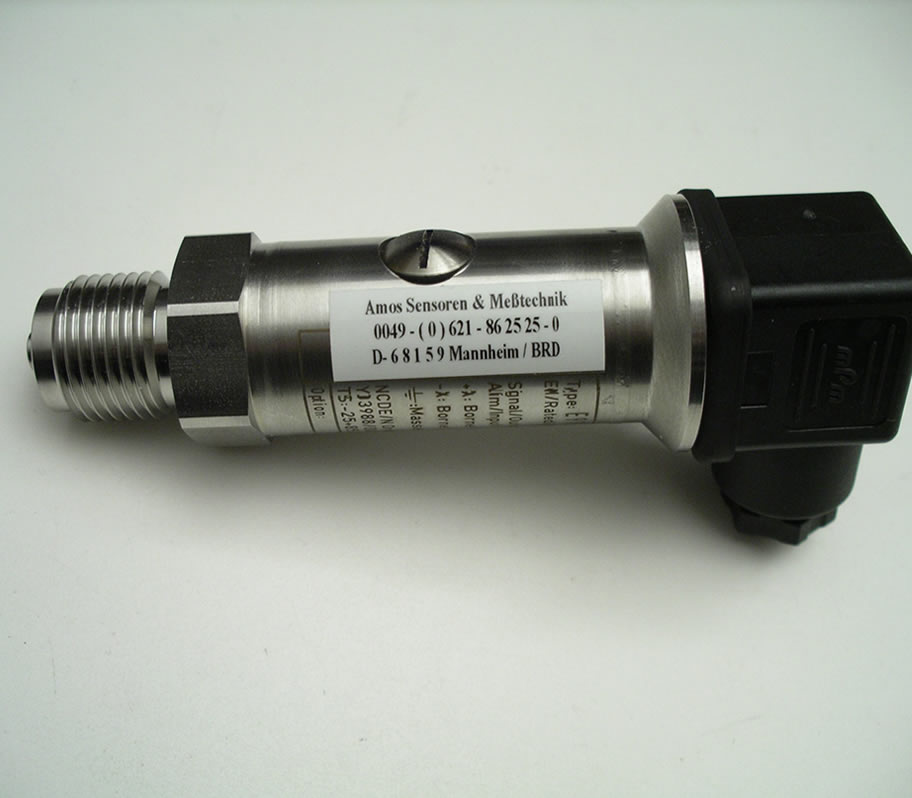

Industrial Application from 350 mbar with Amplifiers, Gage and Absolute
Foil and Thick film Technology with and without integrated Amplifiers, 5V output Signals. Ranges from 350mbar to 4000bar. Mechanical interface 1/4" NPT or metric. High- and long term temperature stability, cost effective. Partly available in short delivery times.
Fiber Optics signal transmission, RFI / EMI insensible, up to +350°C
A Fiber Optic line is transmitting the Signals between the Sensing element and the Siganl conditioning without any RFI / EMI disturbenses at all. The Sensing elemnt comprises no electrical element and is therefore suitable for applications up to +350°C. Smallest Membrane 2,8mm in Diameter. Resonanse Frequency 115kHz. Ideal for instalation in Gasturbines, and Combustion Engines.

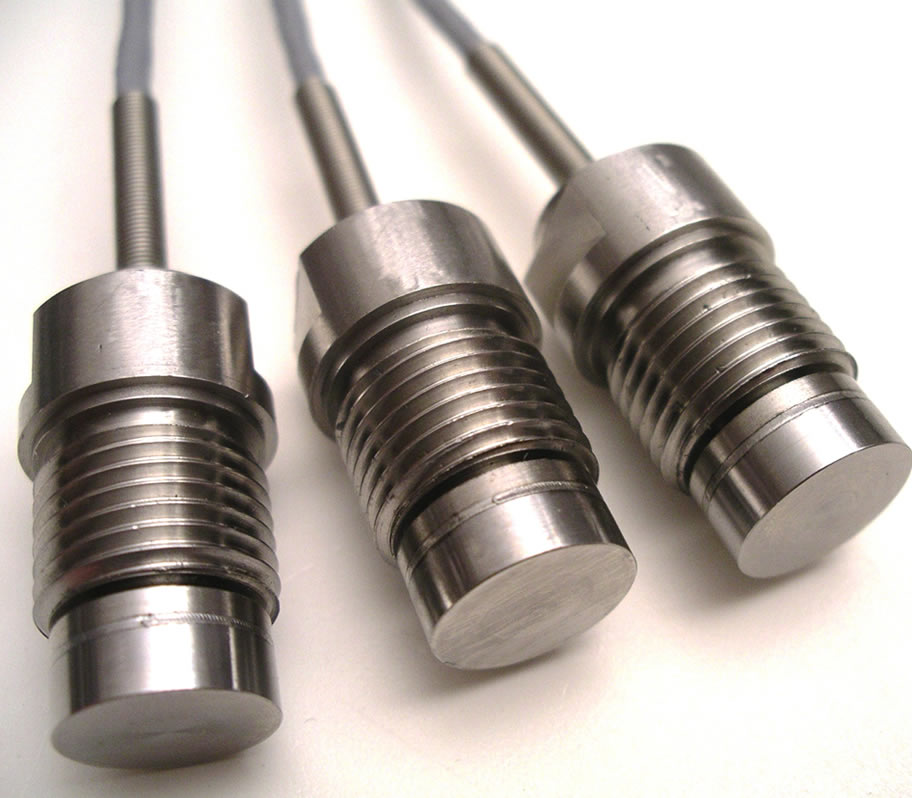

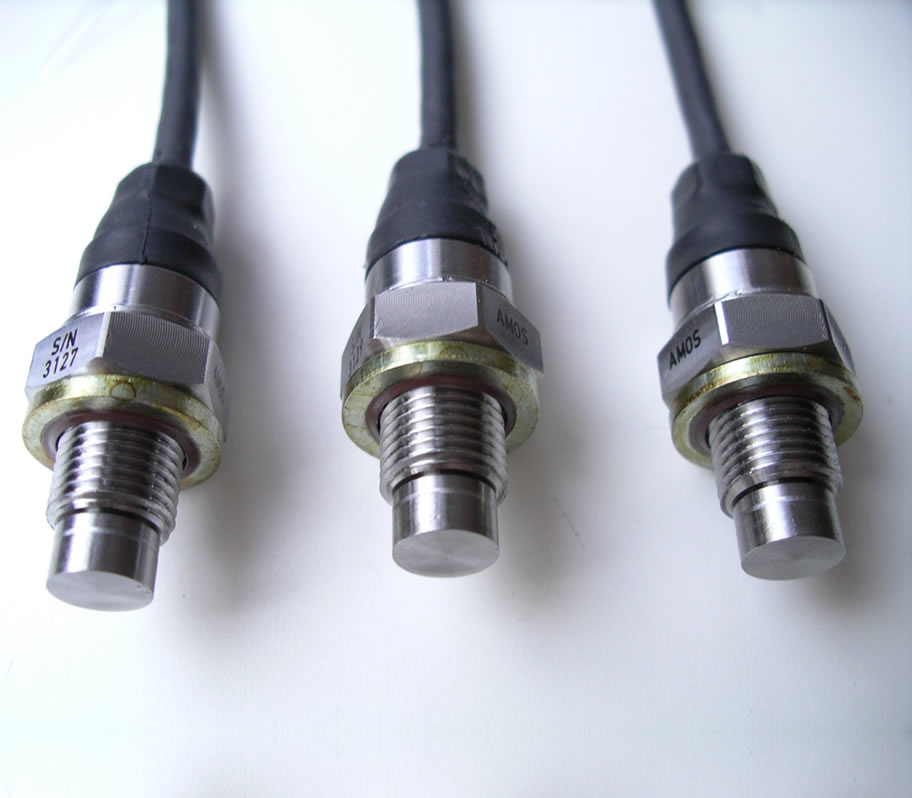

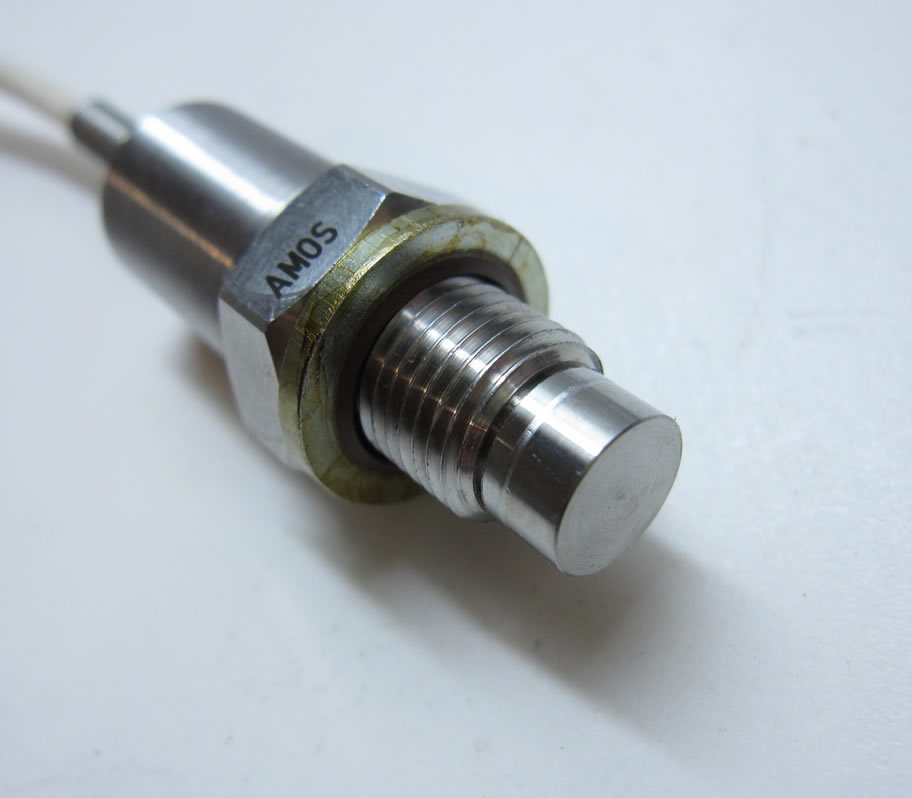

Model APM - 550 - M10 - XXX

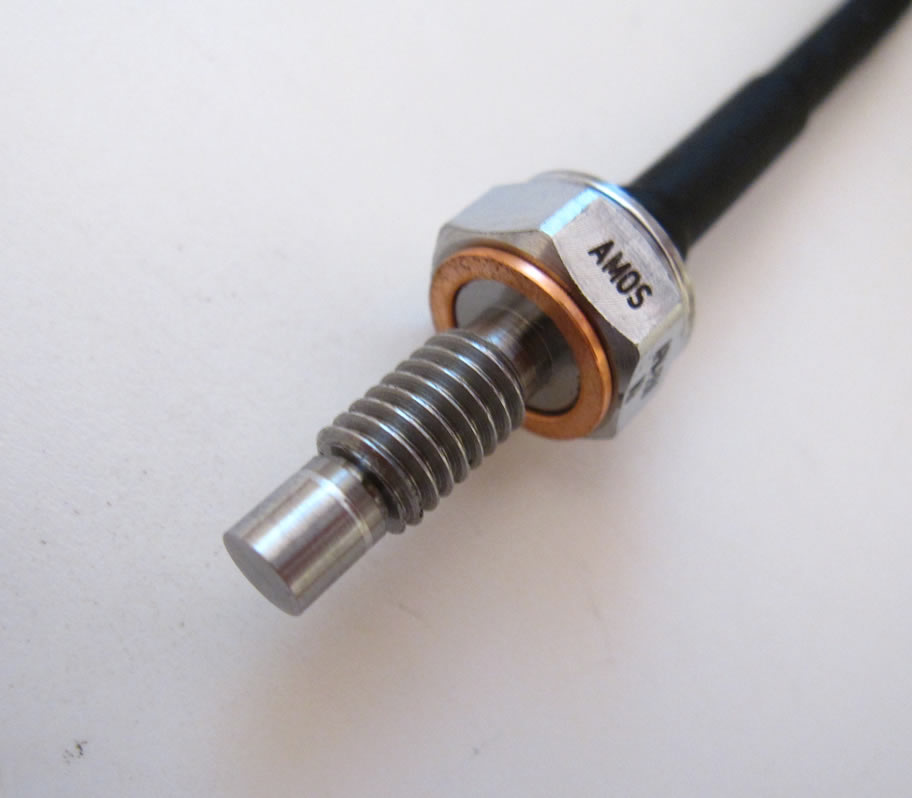

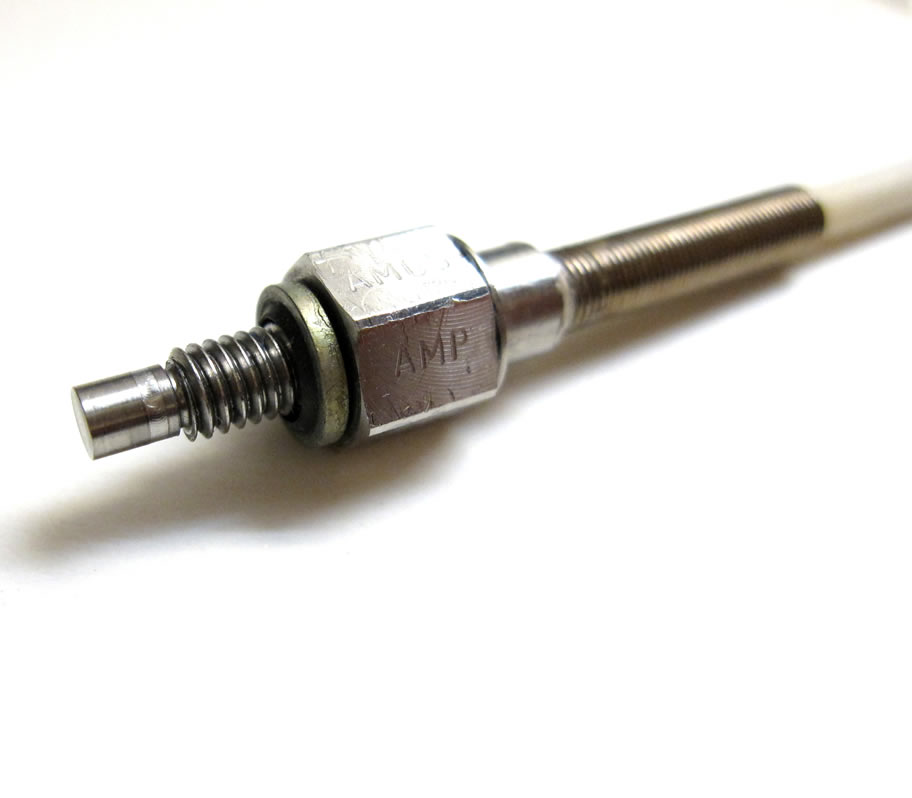

Model APM - 550 - M5 - XXX

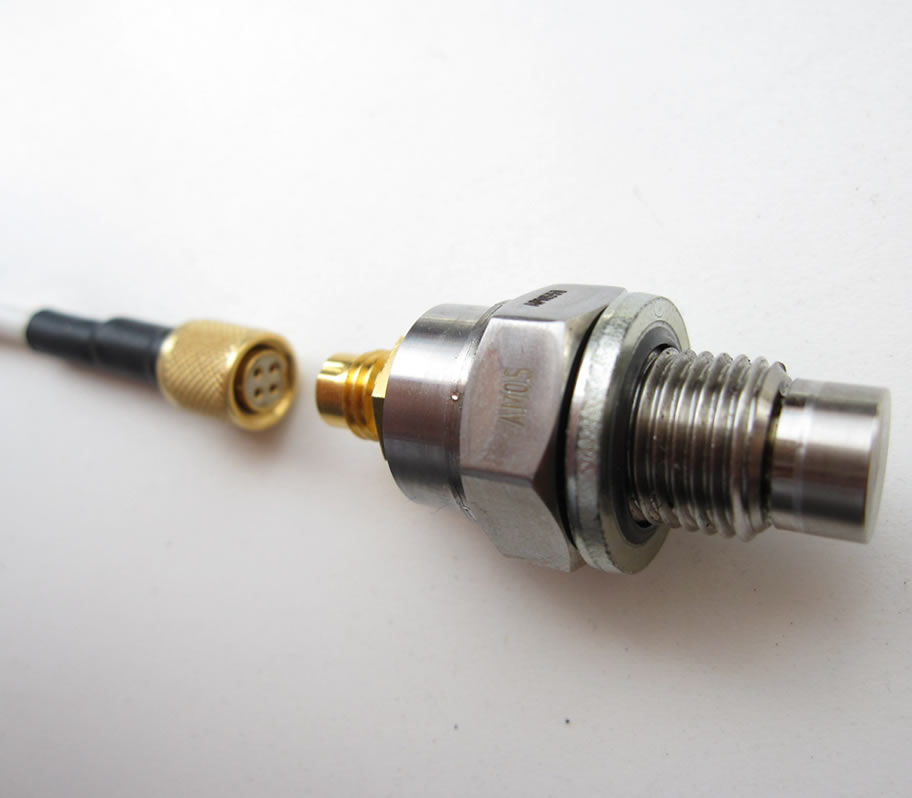

Model APM - 550 - M4 / - 5 - X
Semiconductor and Foil- Gages
Resistive, M10 Thread
Membrane : Flush mounted
Ranges : 0 - 2 - 1000bar
Frequency : 0 - 300kHz
Signal : 10V / 4 - 20mA
Semiconductor Gages, Resistive
M5 Thread
Membrane : Flush mounted
Ranges : 0 - 2 - 350bar
Frequency : 0 - 600kHz
Signal : 10V / 4 - 20mA
Semiconductor Gages, Resistive
M4 - M5 Thread
Cable : Connector exit
Flush Membrane
Frequency : 0 - 600kHz
Signal : 10V / 4 - 20m

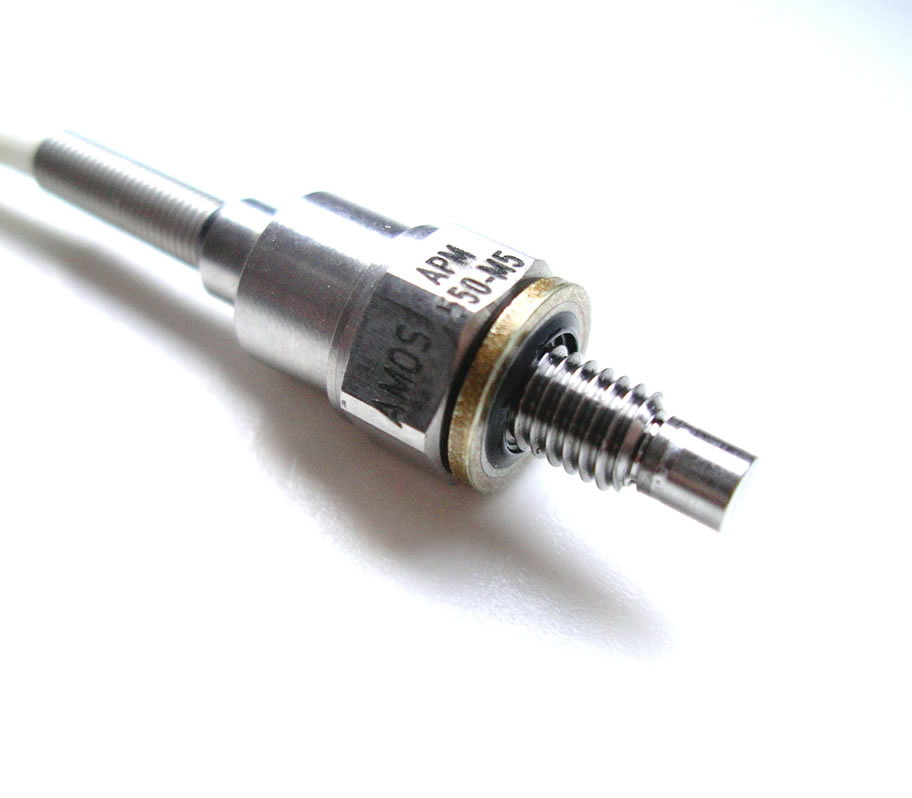

Model APM - 550 - M5 - XXX

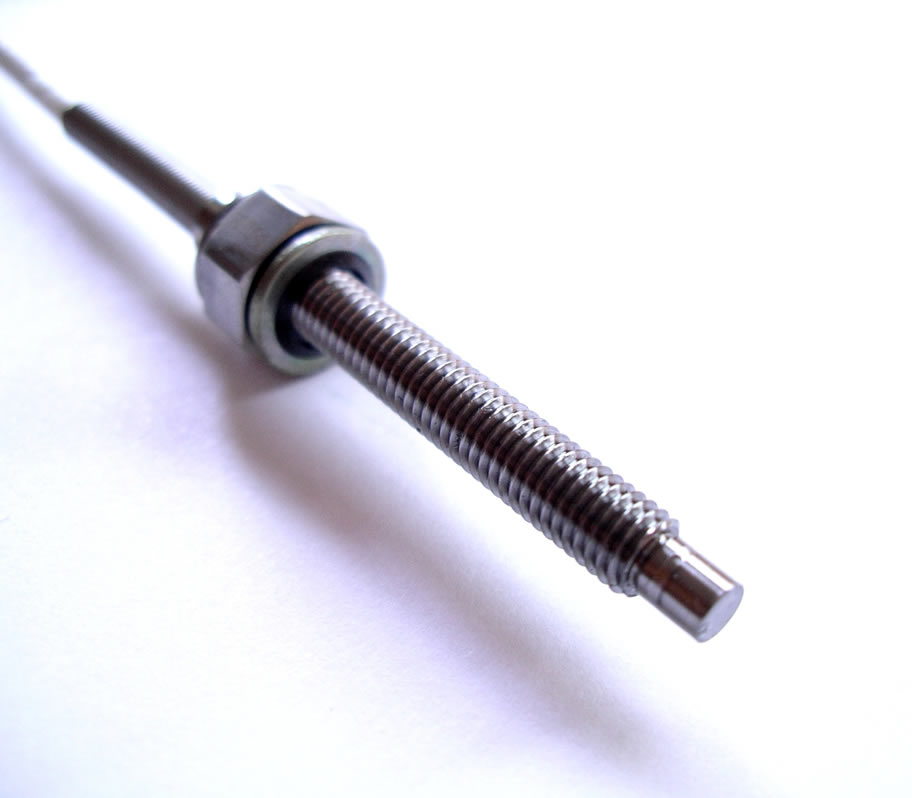

Model APM - 550 - M4 - XXX
Model APM - 550 - 3 - XXX
Semiconductor Gages, Resistive
M5 Thread
Membrane : Flush mounted
Customised length
Frequency : 0 - 600kHz
Signal : 10V / 4 - 20mA
Semiconductor Gages, Resistive
M4 Thread
Membrane : Flush mounted
Ranges : 0 - 2bar - 200bar
Frequency : 0 - 600kHz
Signal : 10V / 4 - 20mA

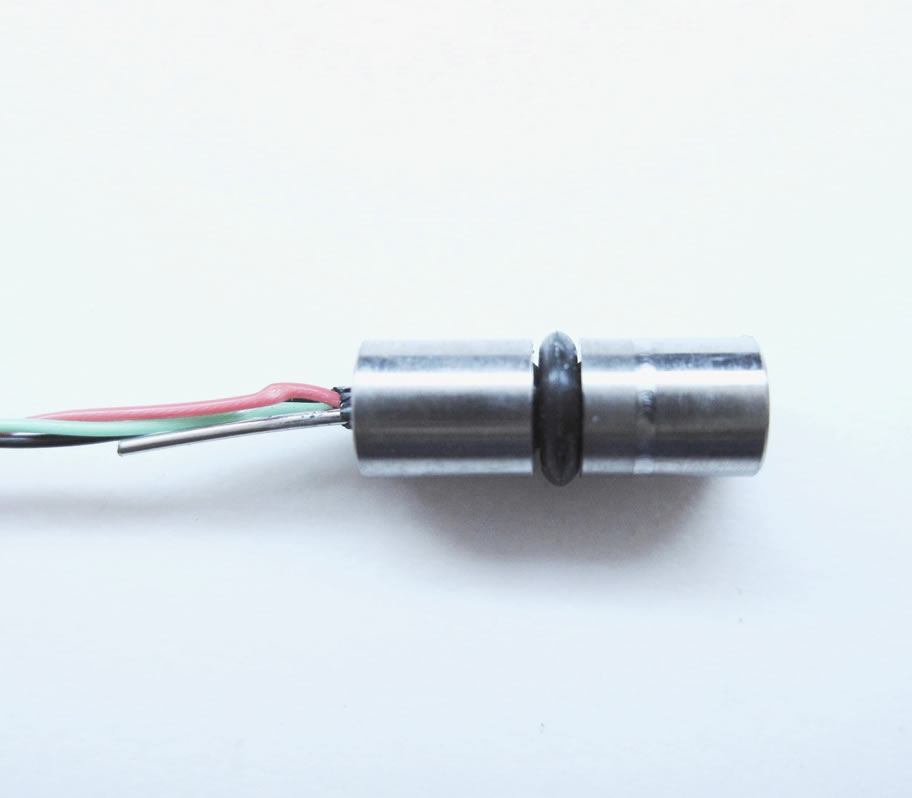

Semiconductor Gages, Resistive,
Diameter : 3 to 4,6 mm
Membrane : Flush mounted
Ranges : 0 - 2bar - 100bar
Frequency : 0 - 600kHz
Signal : 10V / 4 - 20mA

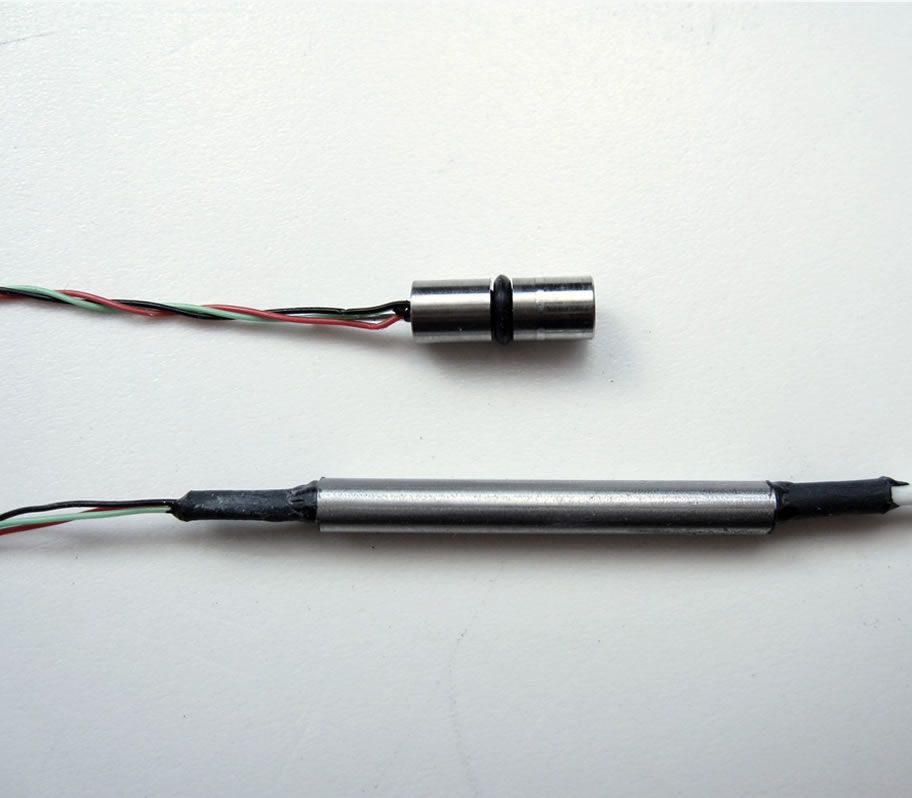

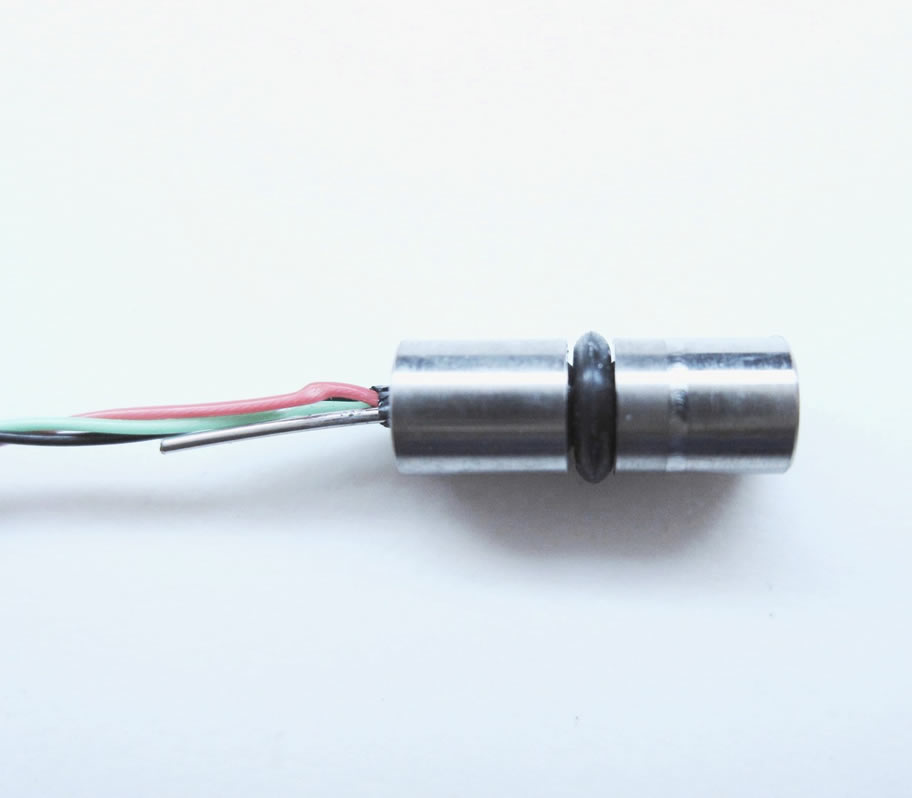

Model APM - 352 / - 4 - XXX
Model APM - 550 - XXX Tantal

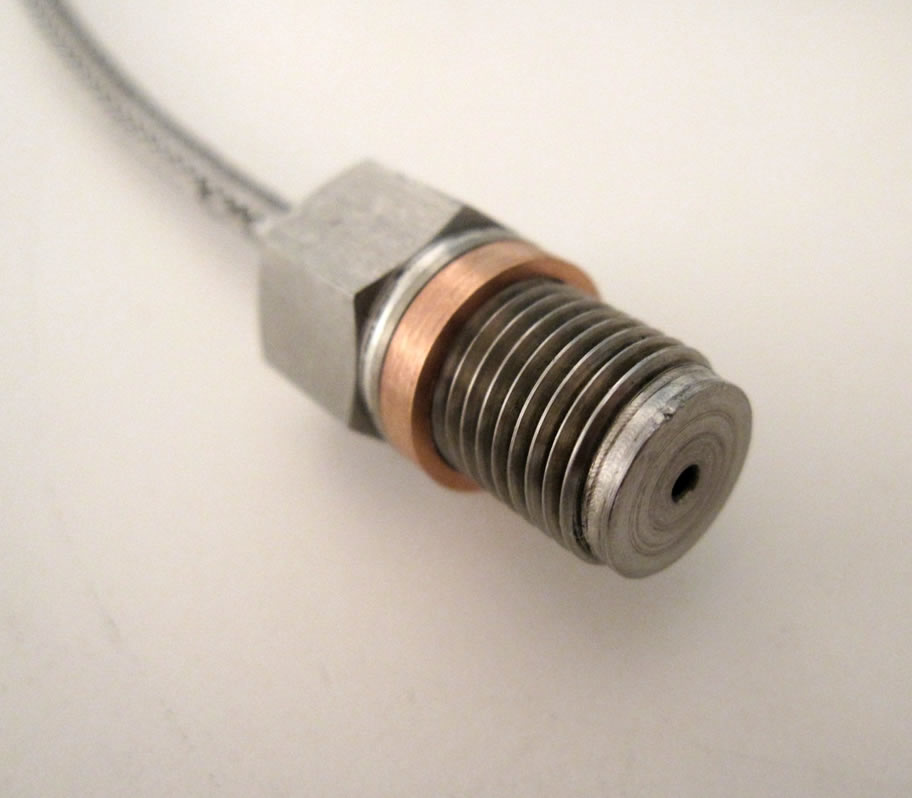

Model PS - Fiber Optic +350°C

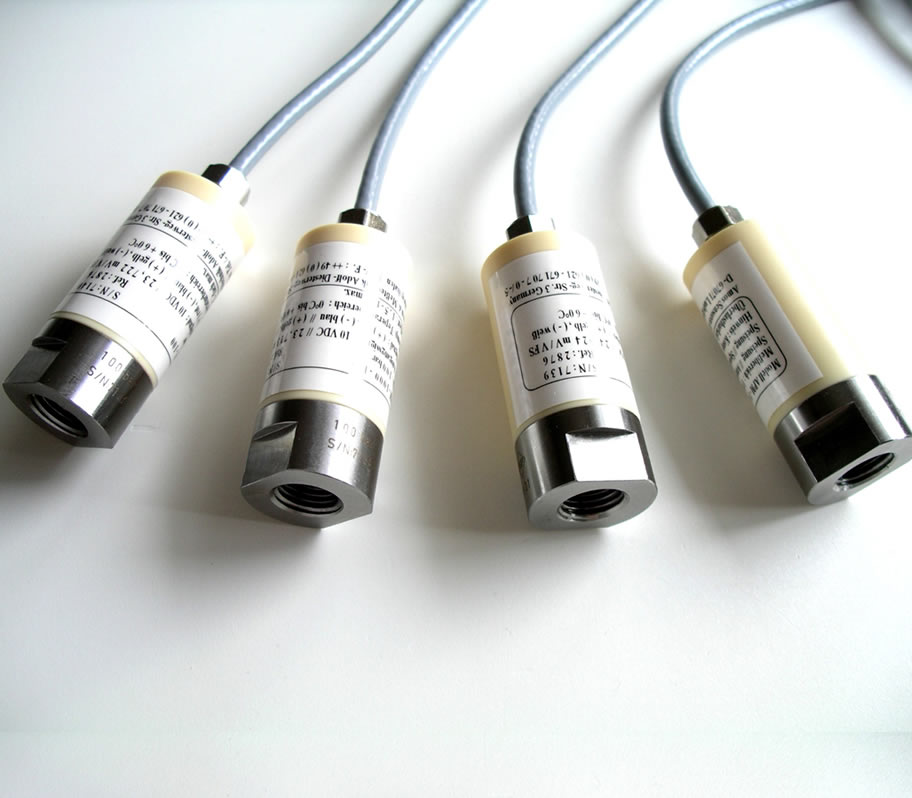

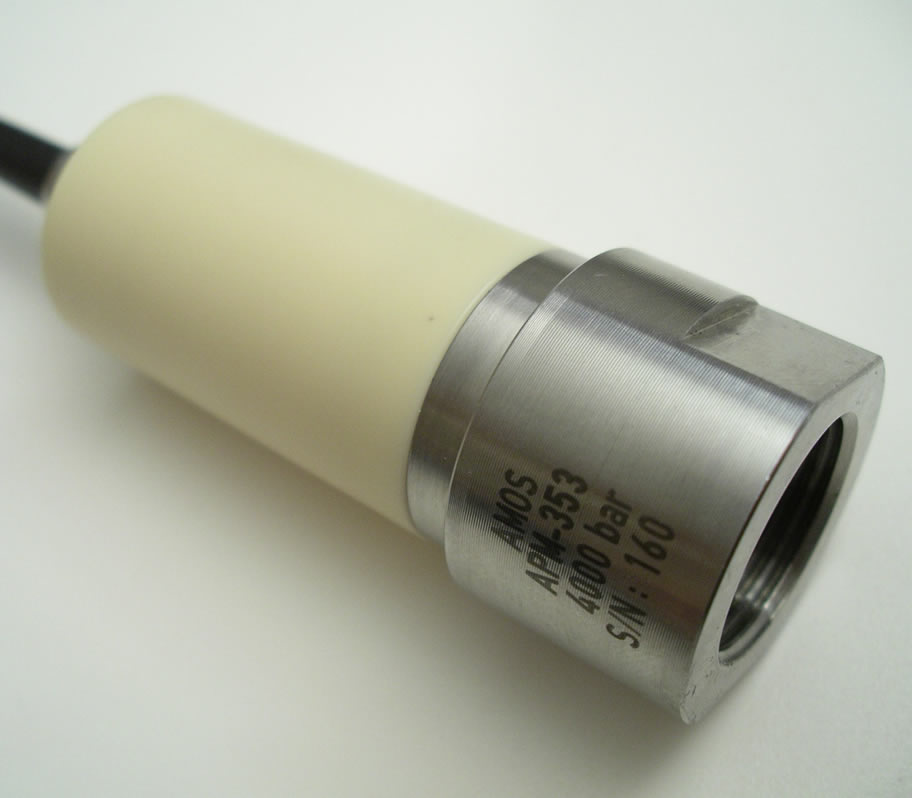

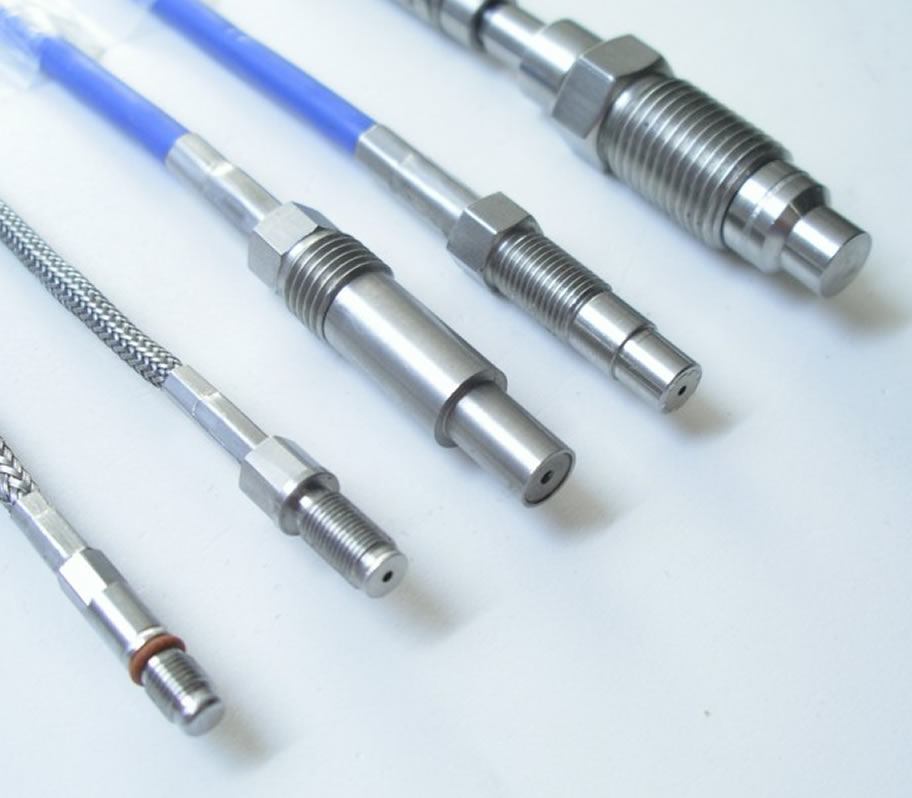

Foil- or Thick film Technology
With integrated Conditioners
Signals up to 5V
Ranges : 0 - 350mbar to
4000bar
Tread : Metric / Imperial
Semiconductor and Foil- Gages
Resistive, M10 Thread
Membrane : Flush mounted DMS
Custom Made
Material : Tantal
Extreme acid-resistant
Signaltransmission by Fiber Optics
lines, no RFI / EMI disturbance,
Temperature :
up to + 350°C.
Miniature 1,8mm Diasmeter
also Flush Membrane
500 Millionen Cycles
