Sensors & Measurements
Load Cells ( also Miniature )

Semiconductor and Foil Gages, resistive, static / dynamic, integrated Amplifiers
image-1
Based on Semiconductor and Foil Gages with very low None- Linearity and Hysteresis. Output signal: 10mV or 150mV without amplification or 10V / 4 - 20mA with Miniature Electronic. Ranges starting below 1 Newton. Smallest size of 5mm diameter and 3mm thickness. Tension, Compression application with M5 and M10 threaded Studs.
image-1
Foil Gages, resistive, piezoelectric, Industrial Application, static / dynamic
image-1
Based on Foil Gages with a standard accuracy of 0,05%. Application: Tension, Compression, static, dynamic up to 40kHz and integrated Amplifiers. Ranges : ±1,0 Gram to ±15kN, small size, specials on request. Over range : with stops protected up to 100 times Full Scale.
image-1

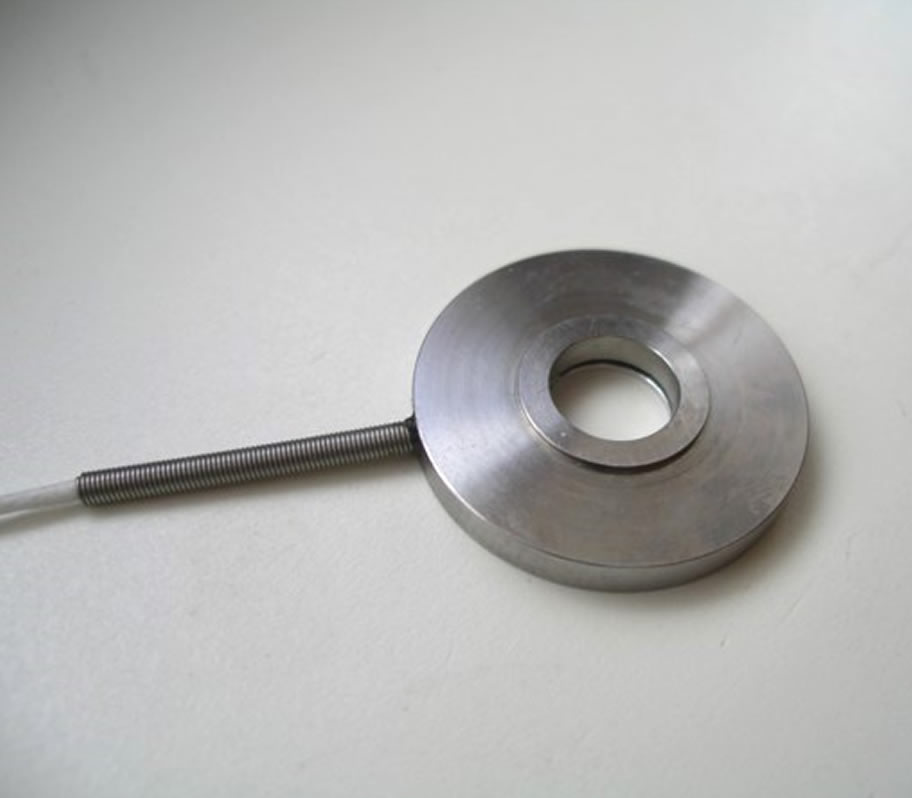

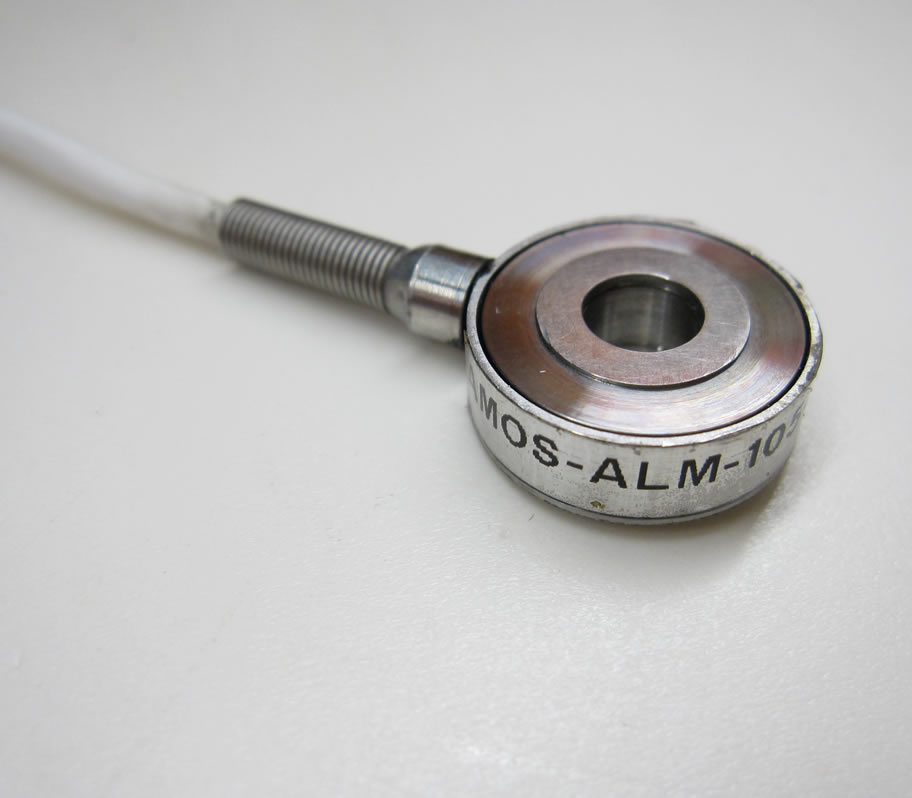

Ultra Flatline, Ring Load Cells, Foil and Semiconductor, resistive, Industrial
image-1
Based on Semiconductor and Foil Gages. Application : Compression and pre loading of bolts and screws. Absolute static and dynamic measurements including signal conditioning. Ranges up to 350kN, small size starting from 12mm diameter, 6mm thickness and 6mm diameter throughput holes. Signal conditioning 10 V or 4 - 20 mA Full Scale.
image-1
Flat Load Cells, Foil Gages, Tension Compression up to 10 Mega Newton
image-1
Based on Semiconductor and Foil Gages with very low None- Linearity and Hysteresis. Output signal: ±10mV or ±150mV without amplification or ±10V / 4 - 20mA with Miniature Electronic. Ranges up to ±1000kN. Low cross axial Sensitivity. Specials protected up to 10 times Full Scale. Housing made of Aluminium / Steel. Long life Seawater compatible, up to 60 bar pressure safe.
image-1

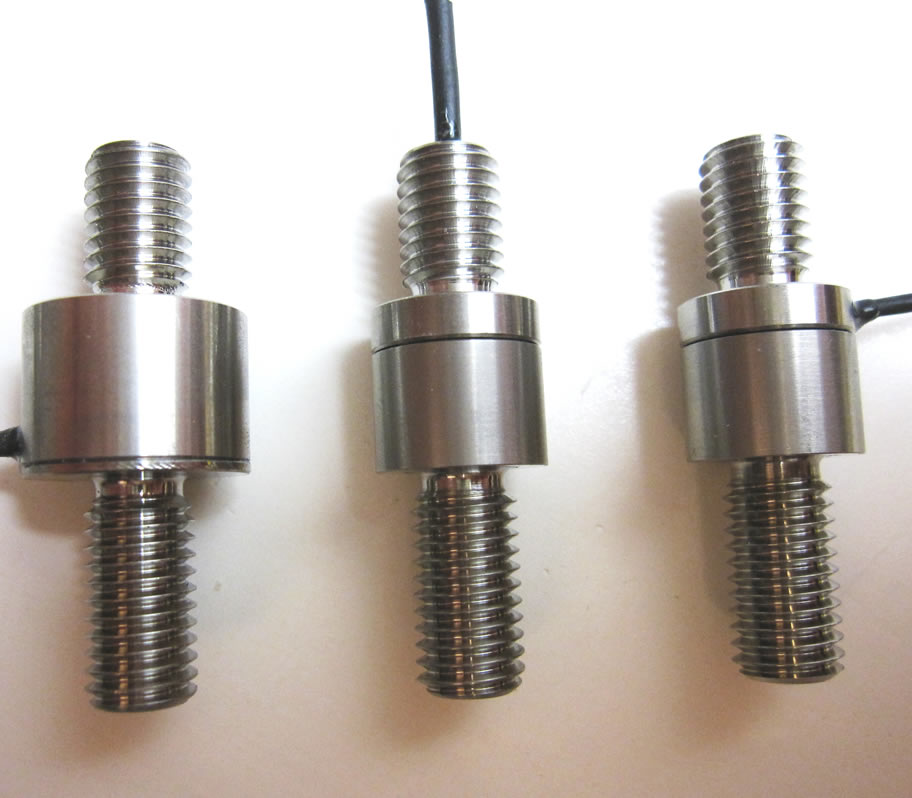

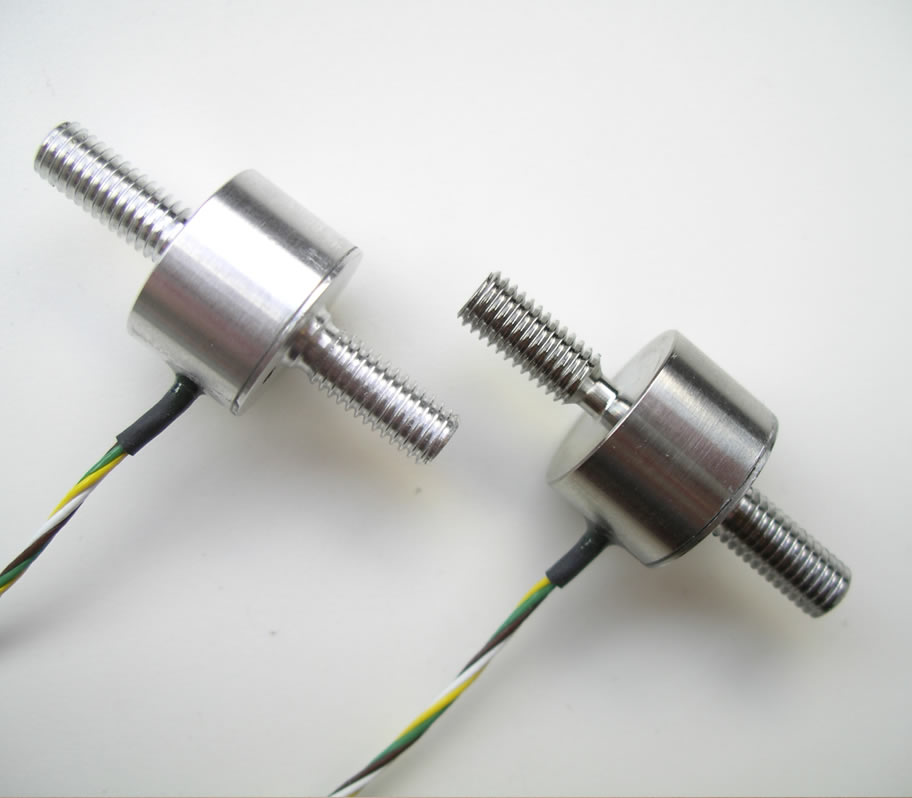

Model ALM - M10 - 170 - XXX

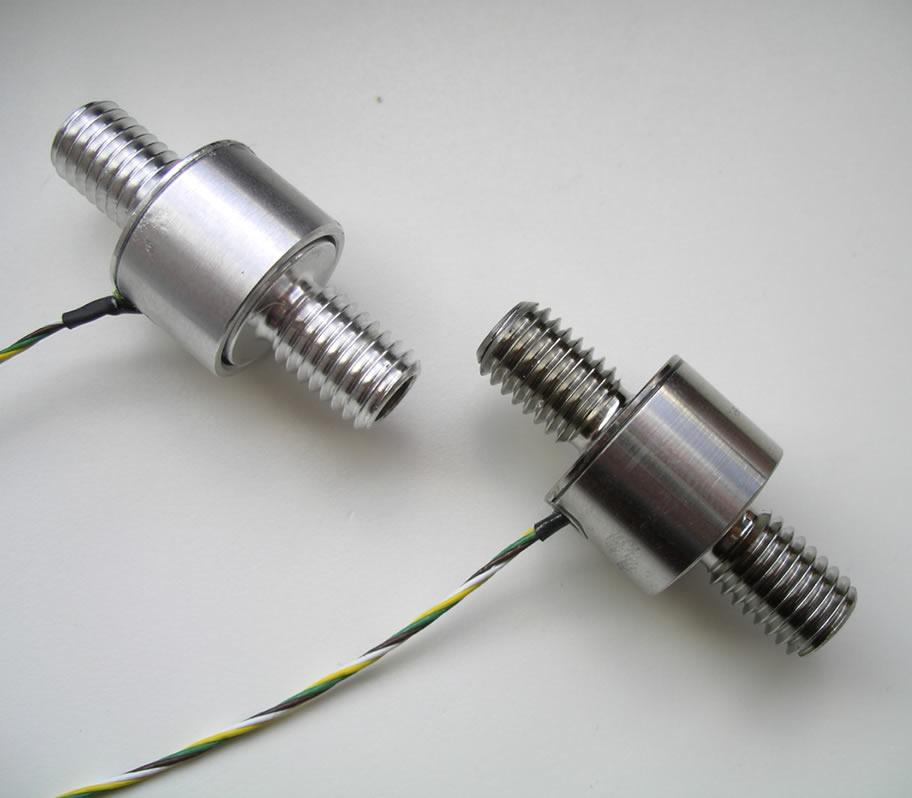

Model ALM - M5 -170 - XXX

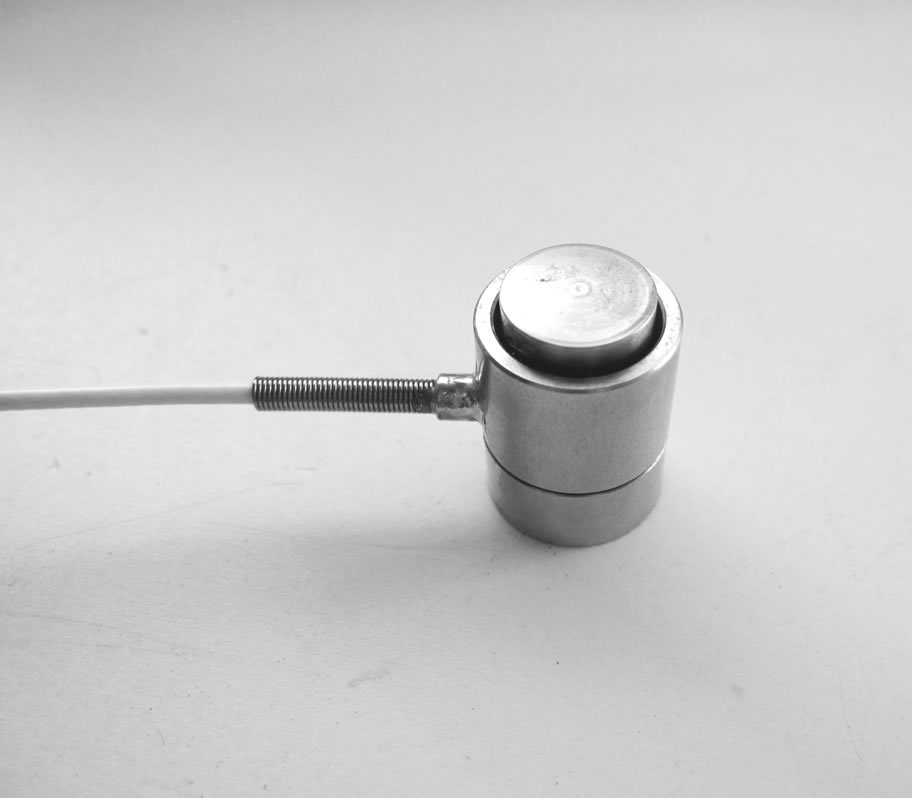

Model ALM - 160 - XXX
image-1
image-1
image-1
Semiconductor and Foil- Gages
Resistive, M10 Thread
Tension Compression, to +200°C
Ranges ± : 0 - 2N - 15kN
Static and Dynamic
Signal : ±10mV / ±100mV
±10V / 4 - 20mA
Semiconductor and Foil- Gages
Resistive, M5 Thread
Tension Compression, to +200°C
Ranges ± : 0 - 2N - 2000N
Static and Dynamic
Signal : ±10mV / ±100mV
±10V / 4 - 20mA

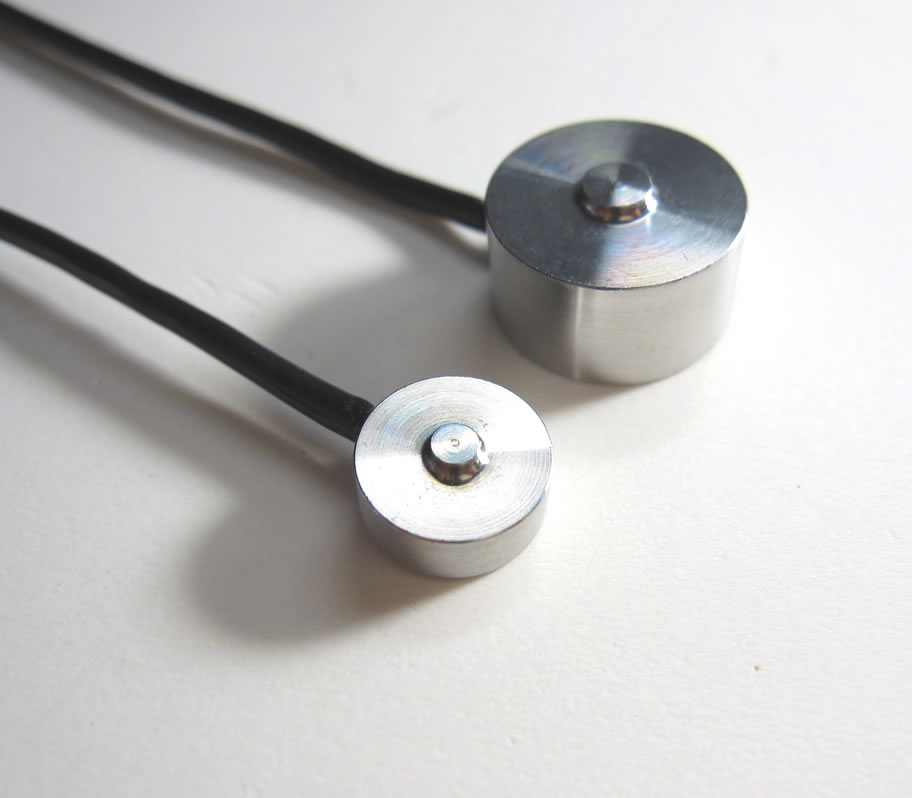

Semiconductor and Foil- Gages
Resistive, Diameter 10mm
Compression, to +200°C
Ranges ± : 0 - 2N - 15kN Static
and Dynamic
Signal : 10mV / 100mV
10V / 4 - 20mA
Model ALM - 160 - XXX
Model ALM - 180 - XXX
Model ALM - 180 / - 105 XXX
image-1
image-1
image-1

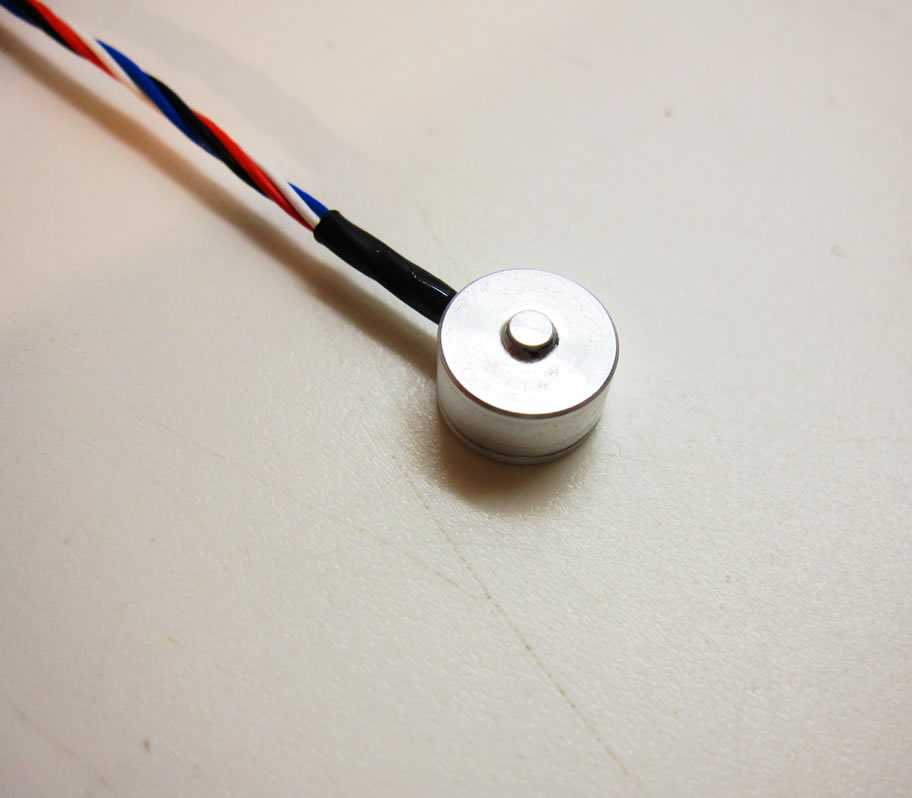

Semiconductor and Foil- Gages
Resistive, Diameter : 5mm
Compression, Ultra flat
Ranges ± : 0 - 2N - 500N
Static and Dynamic
Signal : 10mV / 100mV
10V / V4 - 20mA

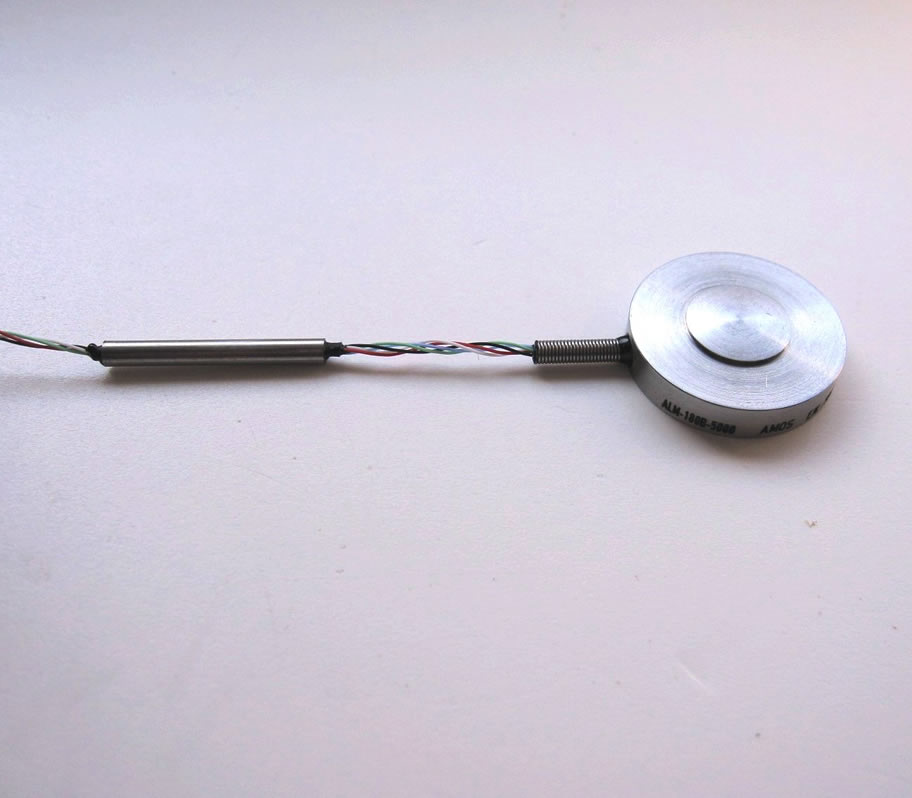

Semiconductor and Foil- Gages
Diameter : 12mm to 25mm
Ultra flat from 2,5mm
Ranges ± : 0 - 5N - 5kN
Load impression over a Calotte
Signal : 10mV / 100mV
10V / 4 - 20mA

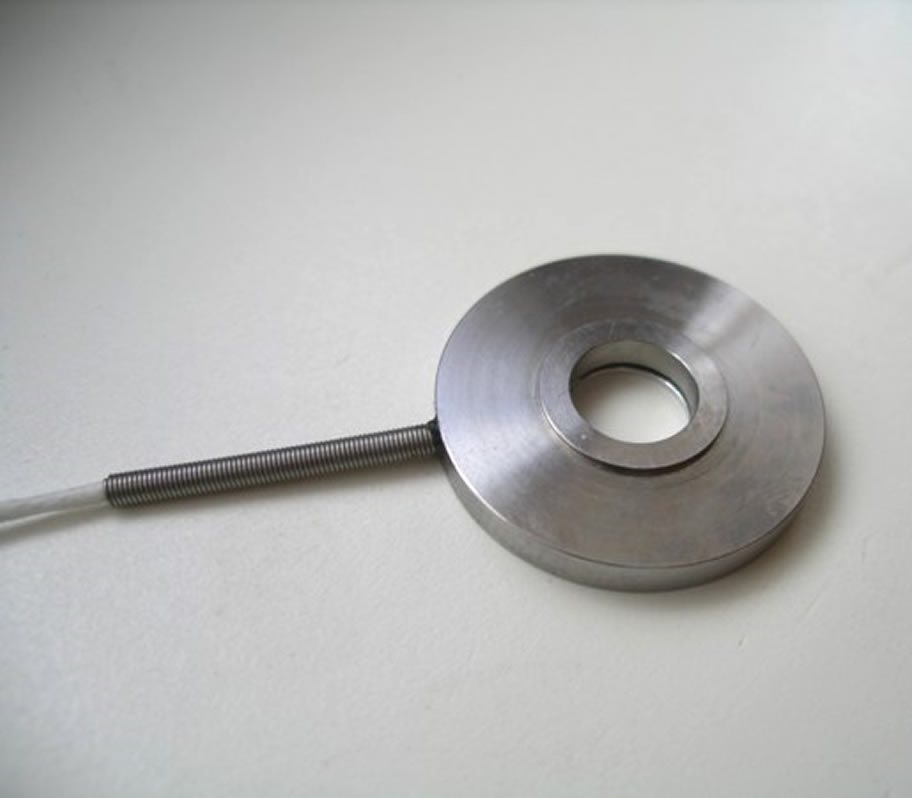

Semiconductor and Foil- Gages
Diameter : 12mm to 50mm
Ultra flat from 2,5mm to 19mm
Ranges ± : 0 - 5N - 320kN
Throughput : 5mm to 24mm
Signal : 10mV / 100mV
10V / 4 - 20mA

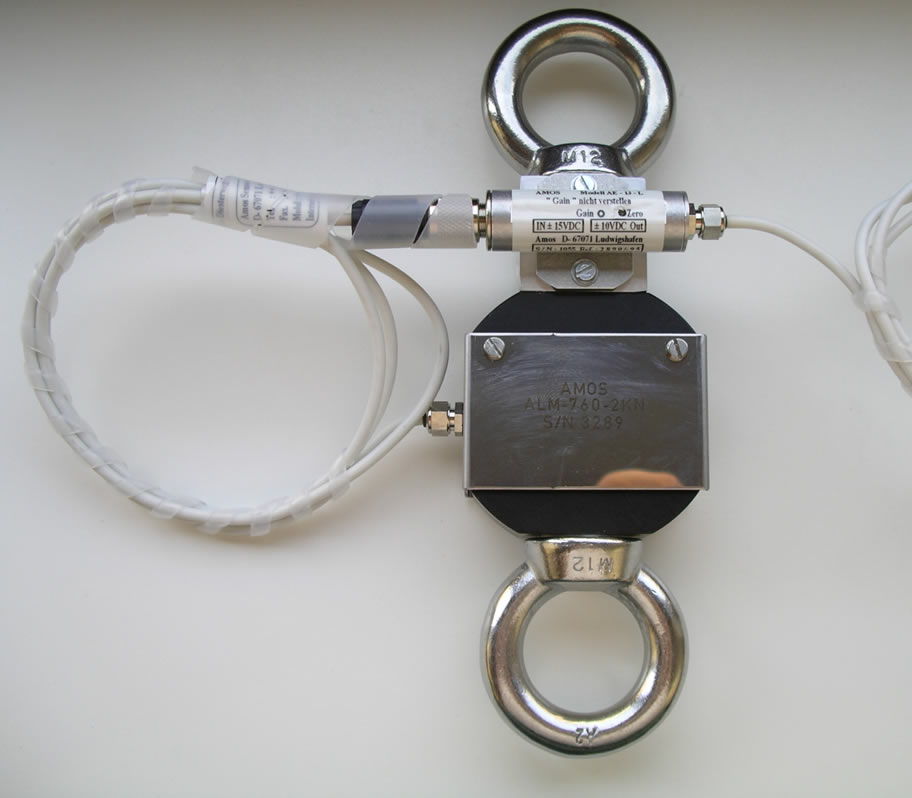

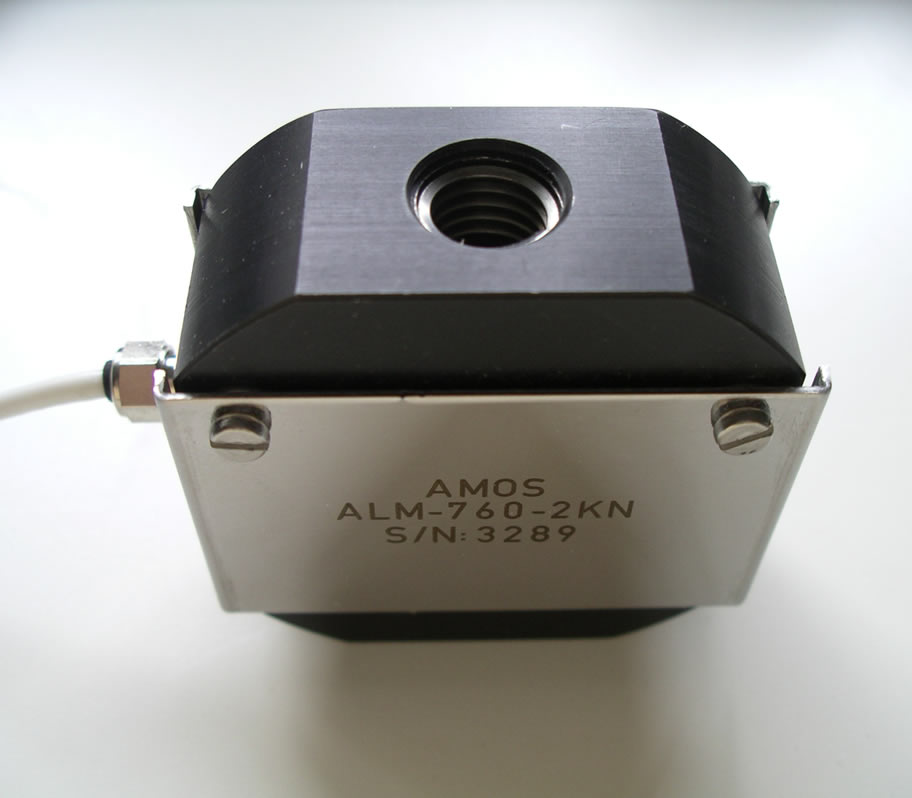

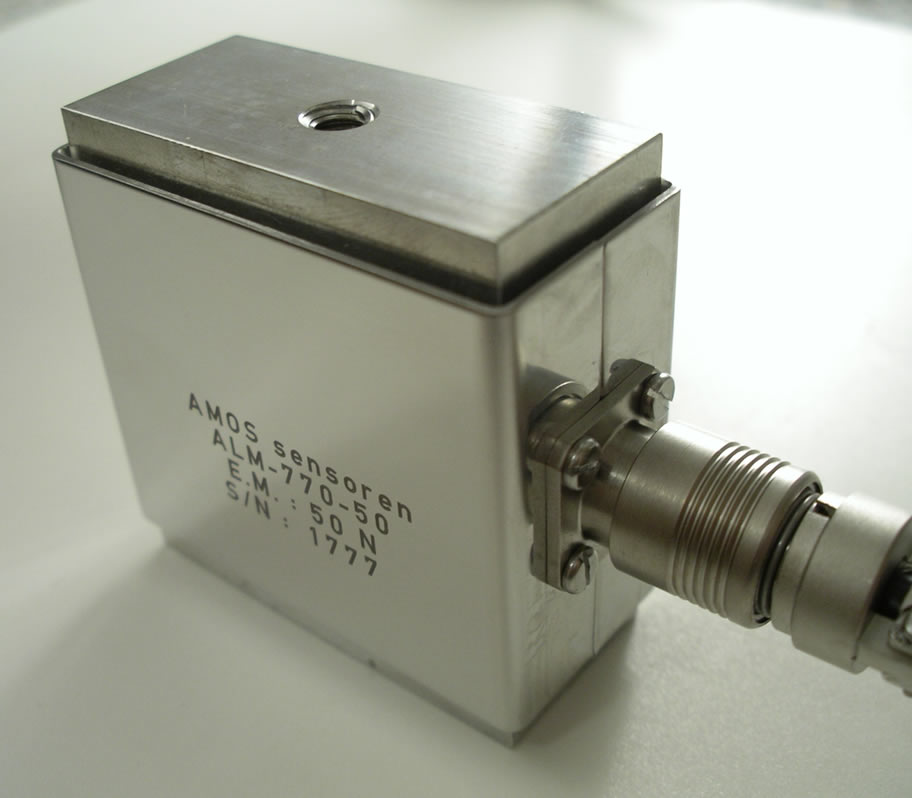

Model ALM - 760 to 790 - XXX

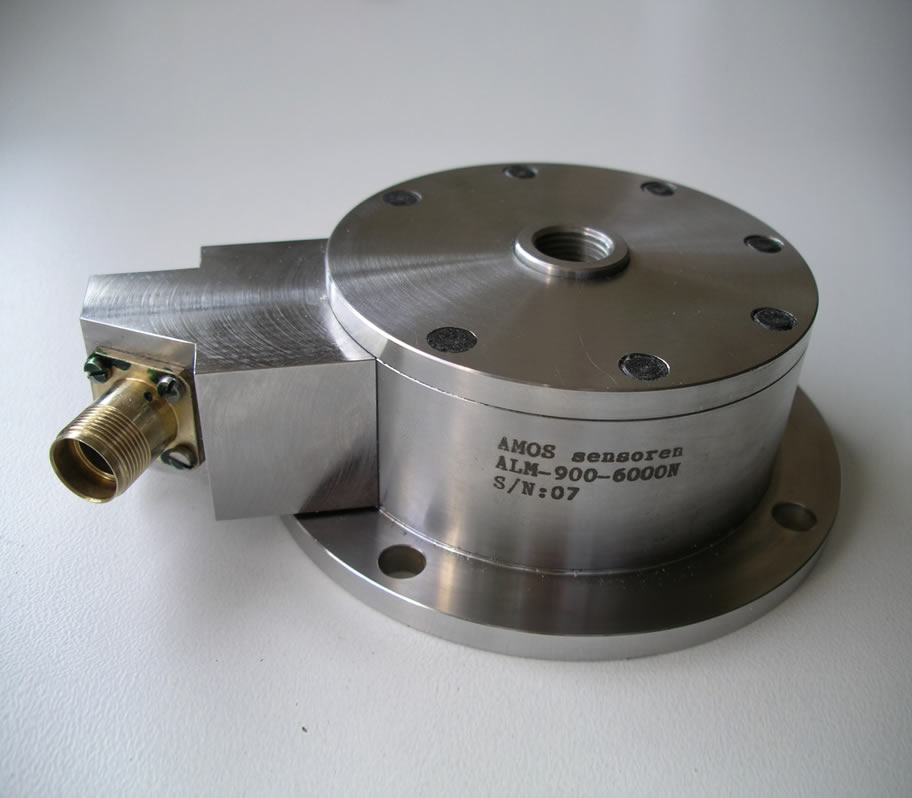

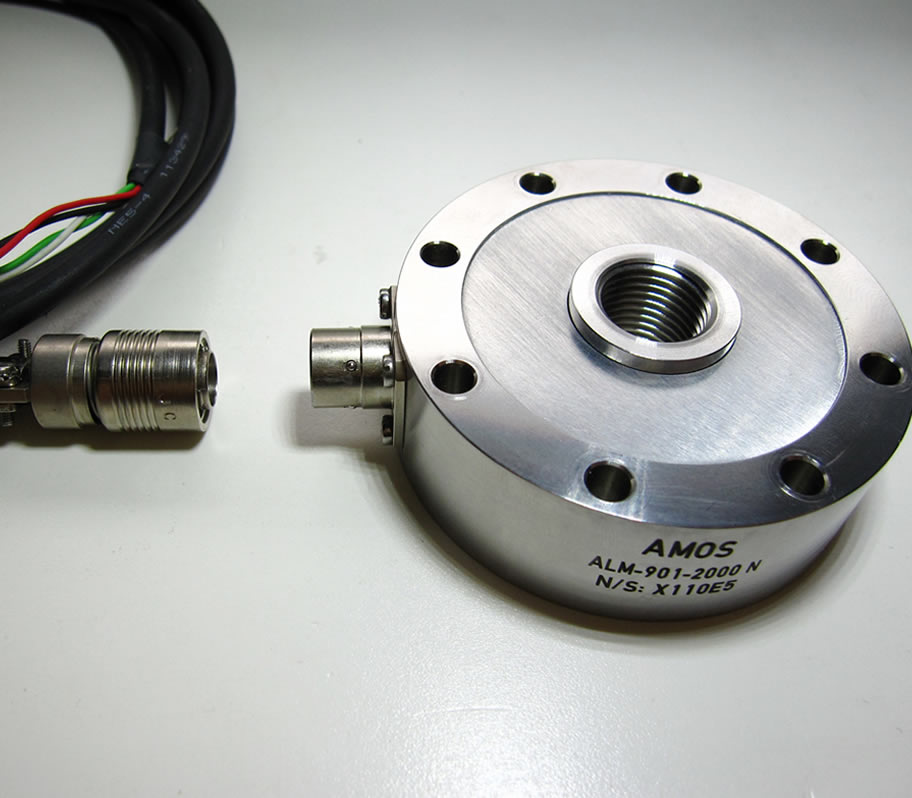

Model ALM - 900 / - 901 - XXX

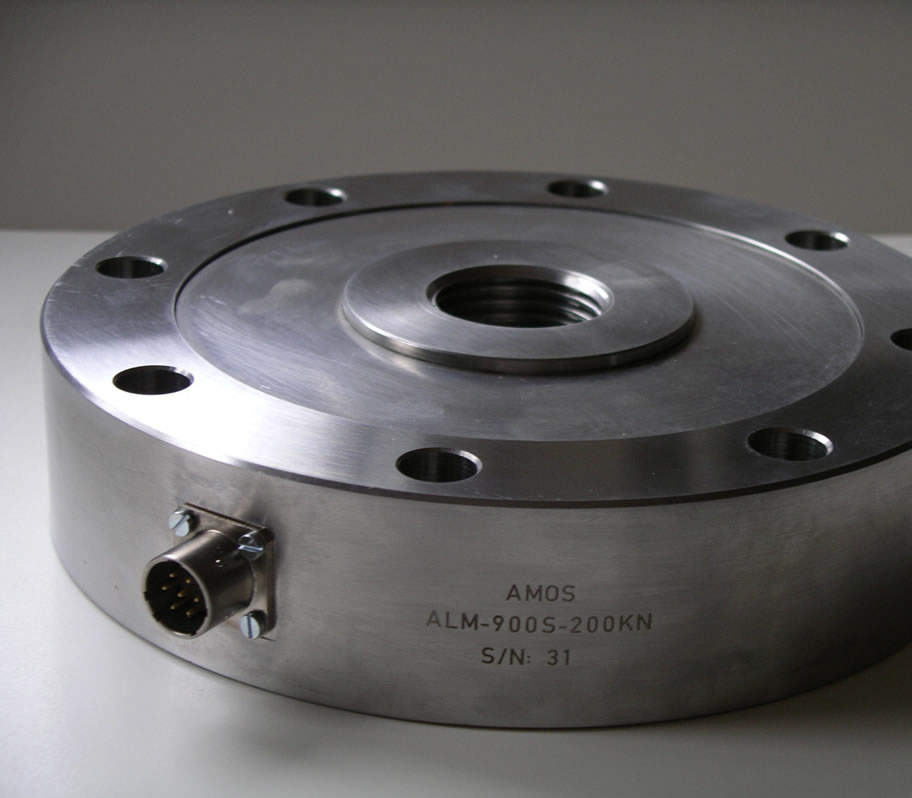

Model ALM - 900S - XXX
image-1
image-1
image-1
Semiconductor and Foil- Gages
Ranges ± : 0 - 1N - 15kN
Temperature : ± 125°C
Threaded holes : M3 to M6
Tension Compression,
Overload : 100 times FS
Signal : ±10mV / ±100mV
±10V / 4 - 20mA


Semiconductor and Foil- Gages
Diameter : 70mm to 270mm
Thickness : 25mm to 80mm
Ranges ± : 0 - 100N - 1MegaN
Threaded holes : M16 to M80
Tension Compression, +125°C
Signal : ±10mV / ±100mV
±10V / 4 - 20mA


Semiconductor and Foil- Gages
Ranges ± : 0 - 10kN
Long life Seawater compatible
up to 60 bar pressure safe.
Tension Compression
Signal : ±10mV / ±100mV
±10V / 4 - 20mA
